Manufacturer Since 2008 · Ma'anshan, China

Precision CNC Press Brakes Built for Global Industry

Bosch-Rexroth hydraulics. Delem and Cybelec controls. Siemens motors. 3-year structural warranty. Engineered in China, trusted in 70+ countries.

Explore Products → Get Free Quote

17+

Years Experience

270+

Units / Year

70+

Export Countries

12Km²

Factory Area

Our Product Lines

Complete Sheet Metal Fabrication Solutions

From bending to cutting, punching to rolling — KECMT manufactures the full range of sheet metal machinery with global-brand components.

Bending

WC67K Series · Best Seller

CNC Hydraulic Press Brake

50–600 ton capacity. Delem DA53T/DA66T or Cybelec controls. Bosch-Rexroth hydraulic system. Siemens motors. 3-year structural warranty. The most cost-effective press brake on the market.

50–600T

Bending Force

1250–8000mm

Table Length

±0.05mm

Repeat Accuracy

From $6,300

FOB Shanghai

View Press Brake Range

Cutting

QC12Y / QC11K Series

Hydraulic Shearing Machine

Swing beam and guillotine types. Shark brand blades. NC/CNC backgauge with ESTUN E21S or Delem controls. 4–20mm cutting capacity. Rapid blade clearance adjustment by single handle.

4–20mm

Cutting Capacity

2500–6000mm

Cutting Length

Swing Beam

Frame Type

From $4,200

FOB Shanghai

View Shear Range

Cutting

1500W – 12000W

Fiber Laser Cutting Machine

Raycus or IPG laser source. CypCut control system. 3015/4020/6020 working formats. Exchange table optional. Fast, precise, and energy-efficient cutting for sheet metal fabrication.

1.5–12kW

Laser Power

3015–6020

Working Format

25mm

Max Steel Cut

From $18,500

FOB Shanghai

View Laser Range

Punching

ES300 Series

CNC Turret Punch Press

Servo direct drive system. 30-ton punching force. 32-station turret with 2 auto-index stations. Die-cutting, forming, beading, and tapping capabilities. High-speed positioning up to 120m/min.

30 Ton

Punching Force

32 Station

Turret Capacity

120 m/min

Position Speed

From $32,000

FOB Shanghai

View Turret Punch

Rolling

W12 Series

CNC 4-Roller Plate Rolling Machine

4-roller CNC design. Pre-bending and rolling in one pass. 6–80mm plate capacity. Double-pinch planetary gear drive. Cone rolling device optional. Ideal for pressure vessels, wind towers, and pipes.

6–80mm

Plate Capacity

2000–8000mm

Roll Length

4 Roller

Configuration

From $9,800

FOB Shanghai

View Plate Roller

Flagship Product

WC67K Series · CNC Hydraulic Press Brake

The Most Cost-Effective Press Brake on the Market

Solid welded frame, Germany Rexroth hydraulic system, international-brand CNC controls. Designed for faster bending, great durability, and fast returning back gauges — trusted by customers in 70+ countries.

50–600T

Bending Force

1250–8000mm

Table Length

±0.05mm

Repeat Accuracy

3 Years

Structural Warranty

Bosch-Rexroth Siemens Delem Cybelec Schneider HIWIN DELTA SUNNY

View Full Specs →

Why KECMT

Real Manufacturer. Global Components. Direct Price.

Real Manufacturer

Not a trading company. We've built press brakes and shears since 2008 in our 12,000m² Ma'anshan factory.

Global-Brand Parts

Bosch-Rexroth hydraulics, Siemens motors, Delem/Cybelec controls, Schneider electrics, HIWIN guides.

3-Year Warranty

3-year structural warranty, 1-year electrical warranty. Fast spare parts shipping worldwide.

Direct Factory Price

No middlemen. Streamlined manufacturing lets us pass savings directly. From $6,300 FOB Shanghai.

Ready to Upgrade Your Sheet Metal Production?

Get a free quote within 24 hours. Factory video inspection available.

Request Free Quote →

All Products

Complete sheet metal fabrication machinery — manufactured by KECMT since 2008.

Portable Fabrication Machines

Compact, portable sheet metal machinery for on-site fabrication and small workshops.

Bending Equipment

Portable Bending Machines

Manual and pedal-operated bending machines for small-scale sheet metal fabrication.

Cutting & Combined

Cutting & Combination Machines

Shears, slitters, and multi-function combination machines for versatile fabrication.

Forming & Specialty

Forming & Specialty Tools

English wheels, bead rollers, planishing hammers, and other specialized metal shaping tools.

Need a Custom Portable Solution?

Contact KECMT for customized portable fabrication equipment tailored to your specific requirements.

Get a Quote →

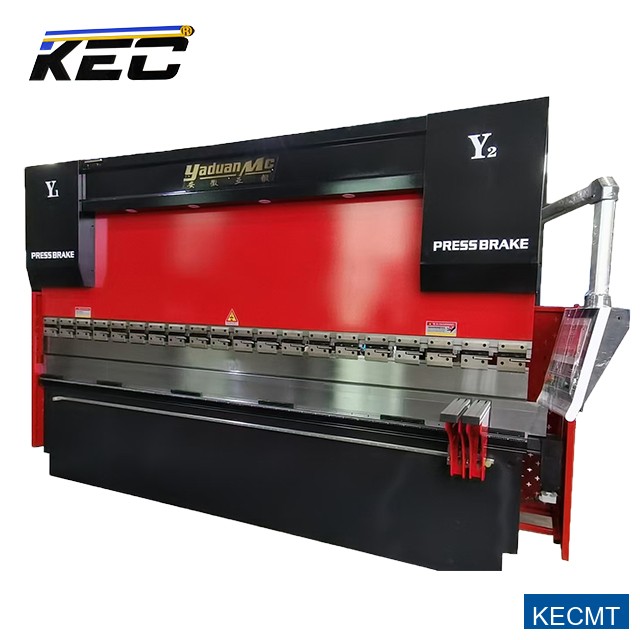

WC67K CNC Hydraulic Press Brake

The most cost-effective press brake — solid structure, easy handling, trusted worldwide.

WC67K Series CNC Press Brake

From $6,300 FOB Shanghai · 50T/2500 TP10S

KECMT CNC hydraulic press brake is a most cost efficient press brake, solid in structure and easy handling. It has become the most popular version from customers all over the world. Designed for faster bending, great durability and fast returning back gauges.

50–600 Ton

Bending Force

1250–8000mm

Table Length

±0.05mm

Repeat Positioning

±0.1°

Angle Accuracy

Get Quote → Request Video

Standard Configuration

Global-Brand Components

Component	Brand / Origin	Notes
CNC Control System	Cybelec CybTouch / TP10S	Swiss design; upgrade to Delem DA53T (+$2,500) or DA66T (+$5,500)
Hydraulic System	Bosch-Rexroth (Germany)	Integrated valve system, reduces leakage
Main Motor	Siemens (Germany)	High-efficiency induction motor
Electrical Components	Schneider (France)	PLC, contactors, circuit breakers
Servo Drive	DELTA (Taiwan)	Back gauge servo motor & driving system
Ball Screw / Linear Guide	HIWIN (Taiwan)	Precision back gauge positioning
Hydraulic Pump	SUNNY (USA)	Or equivalent brand
Tubing Connector	EMB (Germany)	High-pressure hydraulic fittings
Press Brake Tooling	Shark (China)	Punch and die set, 42CrMo steel
Y-Axis Positioning Sensor	Delixi (China)	Precision position feedback

Technical Parameters

Full Model Range — 24 Configurations

All models available with TP10S (standard), Delem DA53T, or Delem DA66T controls. Custom configurations available.

Model	Force (KN)	Table Length (mm)	Distance Between Columns (mm)	Throat Depth (mm)	Slider Stroke (mm)	Max Open Height (mm)	Power (Kw)	G.W (kg)	Dimension (L×W×H mm)

Control

CNC 1-axis

Specialized cable tray making press brake. 63 ton force, 2500mm width, with front supporter. Optimized for cable tray and ductwork production.

Key Features

Engineered for Performance

EU-Designed Frame

Streamlined design originated from EU. Whole through overall welding and annealing treatment for stress relief.

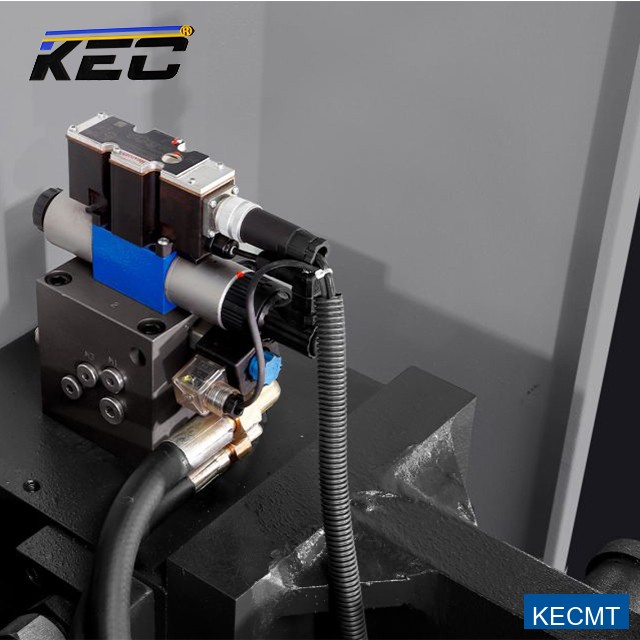

Rexroth Hydraulics

Reliable Germany Rexroth integrated hydraulic system and transmission. Effectively reduces leakage problems.

International Parts

Using international brand parts and CNC parts — Siemens, Schneider, HIWIN, DELTA, EMB, SUNNY.

Visual Operation

Visual operating system, easy operation, convenient, multi-functions and practical. Fast learning curve.

Detailed Features

Engineering & Construction Details

Frame & Structure

01High mechanical strength and great rigidity due to integrated welded steel structure.
02Streamlined design originated from EU, machine frame is whole through overall welding and annealing treatment.
03Replaceable worktable punch and die sets, no welding, forging and precision grinding.
04Fast changing press brake punch holders applied to all KEC press brakes.

Hydraulic & Control

01Hydraulic powered system realizes precise working power, easy and safe operating.
02Reliable Germany Rexroth integrated hydraulic system, effectively reduces leakage problems.
03CNC servo system fitted with 100 program-memory (25 sequences per program), controls hydraulic system and back gauge movement.
04Deflection compensation system controlled by CNC system beneath work table for more precise bending results.

Back Gauge System

Back gauge is equipped with Euro-made ballscrew and slick rod for fast and precise back gauge transmission. Finger pin for flexible and precise positioning of back gauge can be adjusted up and down as per needs. Steel/nylon front supporting arms are equipped to transfer workpieces. KEC has the capability providing customized tools (blades & molds) for users' special requirements.

Quality & Warranty

The critical parts of the KEC press brakes and shearing machines are manufactured in Germany. The carefully selected components come from long-term partners worldwide. We rely on our quality and therefore give our machines a 3-year warranty. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone's satisfaction.

Extended Series

Advanced Press Brake Solutions

Beyond standard hydraulic press brakes, KECMT offers advanced configurations for specialized applications.

Robotic Press Brake

Automation

Robotic press brakes merge advanced robotics with traditional bending processes, enhancing precision, speed, and adaptability for automotive, aerospace, and construction industries.

→Payload: up to 20kg dual-arm configuration
→Repeatability: 0.05mm precision
→Force: 100–6,000 kN range
→AI-driven springback detection
→IoT cloud-based monitoring

Hybrid Press Brake

Eco-Friendly

Combines precision of electric servo motors with raw power of hydraulic systems, optimizing energy efficiency, speed, and accuracy. Servo-driven pumps control hydraulic pressure on demand.

→Energy savings: up to 85% less consumption
→Precision: ±0.01mm repeat accuracy
→Low noise: 20dB during standby
→Reduced oil usage and heat generation
→Extended component lifespan

Electric Hydraulic

High-Speed

Electric hydraulic CNC press brake combines electric servo drive with hydraulic power for maximum efficiency and speed. Ideal for high-volume production requiring fast cycle times.

→Fast bending speed: up to 20mm/s
→Quick-return hydraulic system
→Energy-efficient servo pump
→Reduced cycle time by 50%
→Low maintenance requirements

Tandem Press Brake

Heavy-Duty

Combines two or more synchronized press brakes to bend exceptionally long or heavy workpieces. Ideal for structural beams, shipbuilding parts, and industrial equipment.

→Total force: up to 2,400 tons combined
→Table length: up to 16,000mm
→Synchronized CNC control system
→Distributed bending force for accuracy
→Ideal for shipbuilding & construction

FAQ

Frequently Asked Questions

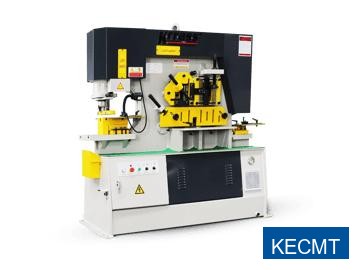

Q35Y Hydraulic Ironworker

5-station combined machine — punch, shear, notch, angle cut, bar cut in one.

Q35Y Series Hydraulic Ironworker

From $7,500 FOB Shanghai · Q35Y-25 (120T)

Multi-station hydraulic ironworker integrates punching, flat bar shearing, bar cutting, notching, and angle shearing into one compact machine. Ideal for steel fabricators, workshops, and construction sites.

35–250 Ton

Punching Force

5 Stations

Workstations

400–600mm

Throat Depth

5–18.5kW

Motor Power

Get Quote → Request Video

Technical Specifications

Q35Y Series Model Range

Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40	Q35Y-50
Punching Pressure (T)	60	90	120	160	200	250
Max Plate Thickness (mm)	16	20	25	30	40	50
Throat Depth (mm)	300	355	400	600	600	600
Round Bar Max (mm)	45	50	60	65	70	80
Angle Steel Cut (mm)	50×50×5	50×50×5	60×60×6	60×60×6	100×100×10	120×120×10
Motor Power (kW)	5.5	7.5	11	15	18.5	18.5
Weight (kg)	1800	2400	4200	6800	7600	13500

Key Features

5-Station Multi-Function

Punching Station

High-speed hydraulic punching. Round, square, and special shape dies. Large punch table with multi-purpose bolster.

Angle Cutting

45° angle steel cutting. Diamond blade for high-quality cuts. Both ends of angle steel can be cut.

Bar Cutting

Round bar, square bar, channel steel, and I-beam cutting. Universal die bolster for quick tool change.

Notching Station

Corner notching for flat steel and iron plate. Rapid cutting with stable performance.

Y32 Four-Column Hydraulic Press

3-beam 4-column design — stamping, bending, flanging, drawing, and powder forming.

Y32 Series Four-Column Hydraulic Press

From $6,800 FOB Shanghai · Y32-100 (100T)

Universal four-column hydraulic press for metal forming, stamping, bending, flanging, and drawing. Heavy-duty welded frame with stress relief. Servo motor energy-saving option available.

63–3000 Ton

Nominal Force

3-Beam 4-Column

Structure

500–1200mm

Slide Stroke

Semi-Auto

Operation Mode

Get Quote → Request Video

Technical Specifications

Y32 Series Model Range

Model	Y32-63	Y32-100	Y32-160	Y32-200	Y32-315	Y32-500
Nominal Force (KN)	630	1000	1600	2000	3150	5000
Daylight (mm)	700	800	800	1120	1250	1500
Slide Stroke (mm)	500	500	650	710	800	900
Ejector Force (KN)	160	250	250	280	400	630
Table Size (mm)	550×500	630×550	700×700	900×900	1200×1200	1400×1400
Main Motor (kW)	5.5	7.5	11	15	22	37

Applications

Wide Range of Applications

Stamping

Metal stamping, blanking, and punching. Automotive parts, hardware, and components.

Deep Drawing

Deep drawing and stretching of metal sheets. Cookware, sinks, tanks, and enclosures.

Bending & Flanging

Metal bending, flanging, and shaping. Automotive panels, brackets, and frames.

Powder Forming

Powder compaction and forming. Ceramic, abrasive, and metallurgy industry.

RAS-2500 CNC Panel Bender

Fully automatic panel bending center — flexible, fast, and labor-saving.

RAS-2500 Automatic Panel Bender

From $180,000 FOB Shanghai · 2500mm working length

Compact electric panel bender with automatic bending and handling cycles. 100% electric, only 3kW max consumption. Universal bending tools, no re-tooling needed. Ideal for electrical cabinets, enclosures, and HVAC ductwork.

2500mm

Working Length

0.2s

Per Bend Speed

100% Electric

Drive Type

3kW

Max Power

Get Quote → Request Video

Technical Specifications

RAS-2500 Key Parameters

Parameter	Value
Working Length	2500mm (customizable up to 4000mm)
Max Sheet Thickness (mild steel)	2.0mm
Max Sheet Thickness (stainless steel)	1.5mm
Max Bending Height	400mm
Bending Speed	0.2 seconds per bend
Drive Type	100% electric (no hydraulics)
Max Power Consumption	3kW
Control System	Multi-axis concurrent linkage, self-developed driver
Automatic Loading	Self-driven robotic arm, ABA automatic blankholder
Tooling	Universal bending tools, no re-tooling for different products

Key Advantages

Why Choose Panel Bender?

High Productivity

0.2s per bend speed. Automatic loading/unloading. Unmanned 24/7 operation possible.

Labor Saving

Replaces 4-6 skilled operators. Self-driven robotic arm. Easy programming, no complex setup.

Energy Efficient

100% electric drive. Only 3kW max consumption. No hydraulic oil maintenance.

Flexible

Universal tooling, no re-tooling. Suitable for small batch, multi-variety production.

QC12Y CNC Hydraulic Shear

Swing beam hydraulic shearing machine — Shark blades, NC/CNC backgauge.

QC12Y Series Swing Beam Shear

From $4,200 FOB Shanghai · 4×2500

KECMT swing beam hydraulic shearing machine is the most widely used metal sheet cutting equipment. Using Shark brand blades and well-designed structure, our shearing machine functions well for a long time. NC or CNC controlled backgauge makes shearing accurate and fast.

4–20mm

Cutting Capacity

2500–6000mm

Cutting Length

Shark

Blade Brand

NC / CNC

Backgauge Control

Get Quote →

Models

Shear Model Range

Model	Max Cutting Thickness (mm)	Max Cutting Length (mm)	Backgauge Range (mm)	Blade Length (mm)	Motor Power (Kw)	Machine Weight (kg)
QC12Y-4×2500	4	2500	0–600	2500	5.5	2,800
QC12Y-6×2500	6	2500	0–600	2500	7.5	3,800
QC12Y-6×3200	6	3200	0–600	3200	7.5	4,800
QC12Y-8×3200	8	3200	0–600	3200	11	6,200
QC12Y-10×3200	10	3200	0–600	3200	15	7,500
QC12Y-12×4000	12	4000	0–800	4000	18.5	11,000
QC12Y-16×4000	16	4000	0–800	4000	22	14,500
QC12Y-20×6000	20	6000	0–1000	6000	37	28,000

Popular Models

Best-Selling Shear Configurations

Detailed specifications for our most popular hydraulic shearing machines. All models available with NC or CNC backgauge control.

QC12Y/K 4x3200 CNC

ESTUN E21S

Capacity

4mm / 3200mm

Type

Pendulum

CNC hydraulic pendulum shearing machine. Rapid and precise blade clearance adjustment by single handle. Multi-edge blades for cutting aluminium, mild steel and stainless steel. Cutting line illumination and wire for shadow line cutting.

QC12Y 4x4000 Guillotine

ESTUN E21S

Capacity

4mm / 4000mm

Type

Guillotine

Hydraulic guillotine shearing machine for sheet metal. Mainframe fitted with numeric control system special for hydraulic shearing machines. Real-time backgauge position display. Multistep programming function for automatic operation.

QC12Y 6x3200 Swing Beam

ESTUN E21S

Capacity

6mm / 3200mm

Type

Swing Beam

High accuracy swing beam hydraulic shear. Compared with ordinary shearing machine, swinging hydraulic shearing machines are mostly used in slanting cutting. Simple structure, low failure rate, high shearing efficiency. No bow, warp or distortion after shearing.

QC12Y 10x3200 NC

ESTUN E21S

Capacity

10mm / 3200mm

Type

Hydraulic

NC hydraulic shearing machine for cutting metal plate. Front feeding platform equipped with ruler for plate feeding and smooth operation. Ideal for medium to thick plate cutting in fabrication shops and manufacturing facilities.

QC12Y 16x2500 Mechanical

Mechanical

Capacity

16mm / 2500mm

Type

Mechanical

Mechanical shearing machine for thick plate cutting. Electric shears from China factory. Simple operation, low maintenance, ideal for thick plate cutting in heavy fabrication. Front feeding platform with ruler for accurate positioning.

Detailed Features

Engineering & Construction Details

Frame & Structure

01Streamlined design originated from EU, machine frame is whole through overall welding and annealing treatment.
02Hydraulic swing beam shears upper blade to shear plate with smaller shearing angle and distortion, improving shearing quality.
03Made by high-quality alloy tool steel, meets requirements of impacting load and high wear resistance.
04Worktable adopts rolling steel ball to reduce frictional resistance, protect workpiece surface.

Hydraulic & Control

01Reliable Germany Rexroth integrated hydraulic system, effectively reduces leakage problems.
02Backgauge adjusted by high precision ball screw driven by E21S controller.
03Light aligning device, convenient for manual operation; pressure cylinder with built-in spring.
04Rapid adjustment mechanism for blade clearance, simple operation by hand and stepless adjustment.

Quality & Warranty

The critical parts of KEC shearing machines are manufactured in Germany. By using Sharks brand blades and well-designed structure, our shearing machine functions well for a long time. CNC controlled backgauge makes shearing accurate and fast production. We rely on our quality and therefore give our guillotine a 3-year warranty.

Fiber Laser Cutting Machine

Innovative sheet metal cutting — fast, easy, highest quality. Replaces hydraulic cutter and plasma.

CNC Fiber Laser Cutting Machine

From $18,500 FOB Shanghai · 1500W 3015

KECMT CNC laser cutting machine is an innovative sheet metal fabrication machine. It changes the game of sheet metal cutting — fast and easy with highest cutting quality. Will finally replace both CNC hydraulic cutter and CNC plasma cutter.

1500W–12000W

Laser Power

3015 / 4020 / 6020

Working Area

Raycus / IPG

Laser Source

CypCut

Control System

Get Quote →

Cutting Capacity

Material & Thickness Reference

Laser Power	Carbon Steel (mm)	Stainless Steel (mm)	Aluminum (mm)	Copper (mm)	Cutting Speed (m/min)
1500W	0.5–6	0.5–3	0.5–2	0.5–1.5	0–24
2000W	0.5–8	0.5–4	0.5–3	0.5–2	0–30
3000W	0.5–12	0.5–5	0.5–4	0.5–3	0–40
4000W	0.5–16	0.5–6	0.5–5	0.5–4	0–48
6000W	0.5–20	0.5–8	0.5–6	0.5–5	0–60
8000W	0.5–25	0.5–10	0.5–8	0.5–6	0–72
12000W	0.5–30	0.5–12	0.5–10	0.5–8	0–80

Detailed Features

Engineering & Construction Details

Laser System

01Raycus or IPG fiber laser source, 1500W to 12000W power range.
02CypCut control system, user-friendly interface, multi-function.
03Exchange table optional, fast and efficient cutting for sheet metal.
04Cast iron bed, high rigidity, stable performance for long-term use.

Performance

01Fast, precise and energy-efficient cutting for sheet metal fabrication.
02Replaces both CNC hydraulic cutter and CNC plasma cutter.
03Max cutting thickness: 30mm carbon steel, 12mm stainless steel.
04Working formats: 3015, 4020, 6020 and custom sizes available.

ES300 CNC Turret Punch Press

Servo direct drive — high-efficiency, energy-saving, low-noise, high-accuracy.

ES300 Series CNC Turret Punch

From $32,000 FOB Shanghai · 30-ton

KECMT CNC turret puncher adopts direct drive servo motor, retaining the advantage of simple and reliable structure. Servo transmission has better performance than hydraulic transmission. ES300 series features high-efficiency, energy-saving, low-noise, high-accuracy — realizes die-cutting, forming, beading, lettering and more.

30 Ton

Punch Force

32 Station

Turret Capacity

1250×2500mm

Max Sheet Size

±0.1mm

Positioning Accuracy

Get Quote →

Capabilities

Process Capabilities

Die-Cutting

Round, square, oblong, and special-shaped holes. Multi-tool station for fast tool changes.

Forming

Embossing, louvering, rib forming, and countersinking in a single setup.

Beading & Lettering

Rolling beads for stiffness, and direct part marking/lettering without secondary operations.

Detailed Features

Engineering & Construction Details

Drive System

01Servo direct drive system, retaining advantage of simple and reliable structure.
02Servo transmission has better performance than hydraulic transmission.
03High-efficiency, energy-saving, low-noise, high-accuracy performance.
0432-station turret with 2 auto-index stations for versatile tooling.

Capabilities

01Die-cutting: round, square, oblong, and special-shaped holes.
02Forming: embossing, louvering, rib forming, and countersinking.
03Beading & lettering: rolling beads for stiffness, direct part marking.
04High-speed positioning up to 120m/min for maximum productivity.

W12 CNC 4-Roller Plate Rolling Machine

Pre-bending + rolling in one pass. Strong generality for plate bending.

W12 Series 4-Roller Plate Roller

From $9,800 FOB Shanghai · 6×2000

KECMT hydraulic plate roller bending machine has strong generality. The 4-roller plate rolling machine has pre-bending function of the plate end and CNC rolling function. It can feed the metal plate at one time, and complete the prebending and roll forming without turning the head.

6–80mm

Plate Thickness

2000–6000mm

Plate Width

4-Roller

Configuration

CNC

Control

Get Quote →

Models

Plate Roller Model Range

Model	Max Plate Thickness (mm)	Max Plate Width (mm)	Top Roller Diameter (mm)	Rolling Speed (m/min)	Motor Power (Kw)	Weight (kg)
W12-6×2000	6	2000	180	4	7.5	3,500
W12-8×2000	8	2000	200	4	11	4,800
W12-12×2500	12	2500	250	4	15	7,200
W12-16×2500	16	2500	280	4	22	10,500
W12-20×3000	20	3000	320	3.5	30	16,000
W12-30×3000	30	3000	380	3	45	24,000
W12-50×4000	50	4000	480	3	75	45,000
W12-80×6000	80	6000	600	2.5	110	85,000

Detailed Features

Engineering & Construction Details

Structure & Drive

014-roller CNC design, pre-bending and rolling in one pass without turning the head.
02Double pinch planetary gear drive, cone rolling device optional.
03Strong generality for plate bending, 6-80mm plate capacity.
042000-8000mm roll length for various workpiece sizes.

Applications

01Ideal for pressure vessels, wind towers, and pipes manufacturing.
02CNC control system for precise rolling and automatic operation.
03One-time feeding completes pre-bending and roll forming.
04High efficiency, energy saving, low noise for continuous production.

Related Equipment

Additional Metal Forming Solutions

Beyond plate rollers, KECMT offers complete metal forming equipment for tube, pipe, and section fabrication.

Hydraulic Roller Bender

Tube & Pipe

Button control hydraulic roll bender for metal sheet, pipe, and section fabrication. Ideal for rolling tubes, pipes, angles, channels, and custom profiles with precision and efficiency.

→Hydraulic drive for smooth, powerful rolling
→Button control panel for easy operation
→Rolls tube, pipe, angle, channel, flat bar
→Pre-bending function for minimal flat ends
→Custom tooling available for special profiles

Hydraulic Press Machines

C-Frame

Button control hydraulic C-frame press machine for metal sheet, pipe, and section bending, stamping, and forming. Versatile single-column design for maximum workspace accessibility.

→C-frame single column design for easy access
→Hydraulic power for consistent force delivery
→Applications: stamping, bending, forming, pressing
→Adjustable working pressure and stroke
→Custom tonnage: 10T to 500T available

Insights & Buying Guides

Expert comparisons, buying guides, and industry analysis for sheet metal machinery buyers.

Product Detail

About KECMT

Real manufacturer of sheet metal machinery since 2008.

2008

Founded

Our Story

Manufacturing Excellence Since 2008

KECMT (Yaduan/KEC/PDT) Machine has been devoted to sheet metal fabrication machines including hydraulic press brakes, laser machines, metal formers, metal benders and shears since Year 2008, with factory scale of more than 12,000 sqm.

We have sheet metal fabrication machine manufacturing capacity of more than 270 sets per year. Decent quality, keen aftersales and direct price is our core value for the global market.

Unlike most Chinese brands that are trading companies, KEC/Yaduan is the real manufacturer — making hydraulic press brakes and shearing machines in our own factory for 17+ years.

2008

Founded in Ma'anshan, Anhui — China's "Machine Tool Capital"

2012

Expanded factory to 12,000m²; launched CNC press brake line

2016

Began exporting to Europe; adopted Bosch-Rexroth hydraulic systems

2020

Launched fiber laser cutter line; export to 50+ countries

2024

Export to 70+ countries; annual production 270+ units; 180 employees

12,000m²

Factory Area

180

Employees

270+

Units / Year

70+

Export Countries

3yr

Structural Warranty

Get in Touch

Free quote within 24 hours. Factory video inspection available.

Contact KECMT Directly

We respond to every inquiry within 24 hours. For fastest service, include your material type, max thickness, and max working width.

Email

roger@kecmt.com

WhatsApp / Phone

+86 183 5532 1931

Factory Address

Bowang District, Ma'anshan, Anhui, China

Business Hours

Mon–Sat: 8:00–18:00 (UTC+8)

Request a Free Quote

Fill in your requirements and we'll respond within 24 hours.
